LV-Switchgears

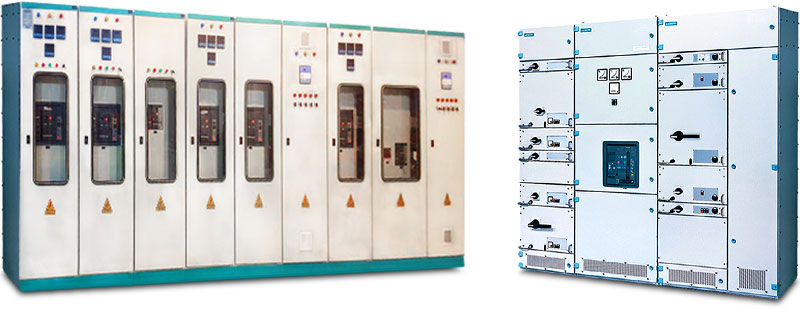

 Low-Voltage Panels until Level of 5000A

·    By relying to its technical knowledge and machineries, 3z elektrik Co has produced fix and drawer compact low-voltage panels, changeover, synchronize etc. with the following specifications:

 General Specifications:

·    Using the galvanized or greasy sheets

·    Using furnace electrostatic powder painting line with 80-120 micron

·    Different IP maintenance degrees (according to the customer demand)

·    Stand panels with nut and screw

·    The proper hinged sweepers; Using sheets with 2 mm thickness in standing panels

·    Using sheets with 1.5 mm thickness in wall panels

·    Nominal voltage of 630V

·    Maximum nominal current of 5000A

·    Nominal frequency level of 50-60 Hz

Special Specifications:

·    Voltage of isolation in a minute: 2500V

·    Maximum allowable attitude: 2000m

·   Minimum environment temperature: -40 °C

·    Maximum environment temperature: +40 °C

·    Allowable humidity: 95%

·    Accordance with IEC 439 Standards

·    Accordance with IEC 60694 Standards

·    Type test of Power Research Center

·    Type test of Iran Power Industry Laboratory (E.P.I.L)

 SLow-Voltage Drawer Panels:

·    By considering to the needs of large and sensitive industrial projects such as oil, gas, petro chemistry, power plants, steel, mines etc. to continue electricity energy and the special conditions to repair the damaged feeder, 3z elektrik Co has produced Low-voltage drawer panels. In this way, the company could provide a complete cover for this section of industry by combining feeders of power distribution and different types of industrial engines by keeping all safety considerations.

·    Voltage: 690V

·    Maximum current: 6300A

·    Repairing as soon as possible

·    Easy to maintain

·    High security for environment and personnel

...................................................................................................................
