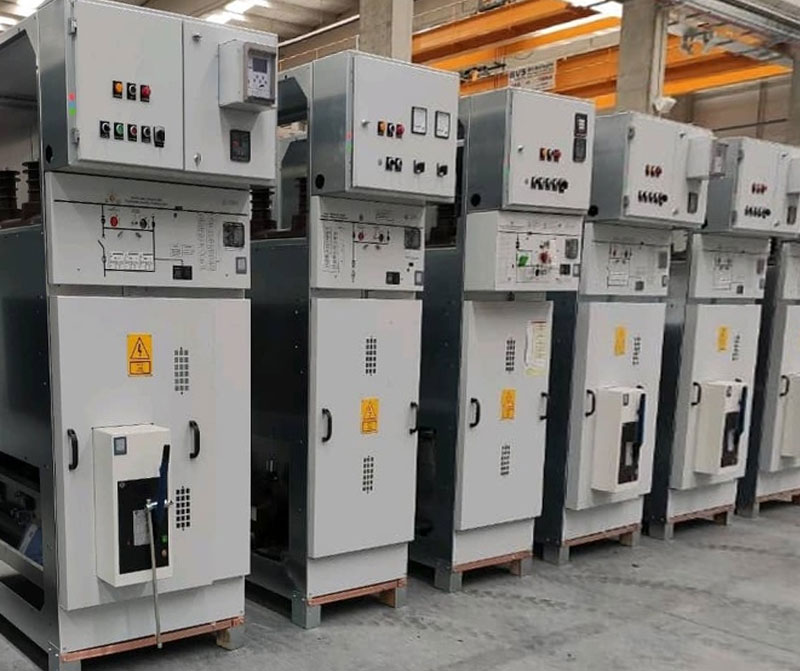

MV-Compact Fixed Switchgears

• Series sheet kiosks are transformer and distribution centers fabricated from galvanized and electrostatic powder coated sheets in order to meet the needs of all kinds of application areas. Electric sheet kiosks (transformer station) which are usable in every climate condition supplies the mid -low voltage (OG/AG) and supply station needs for electric supply companies and private projects.

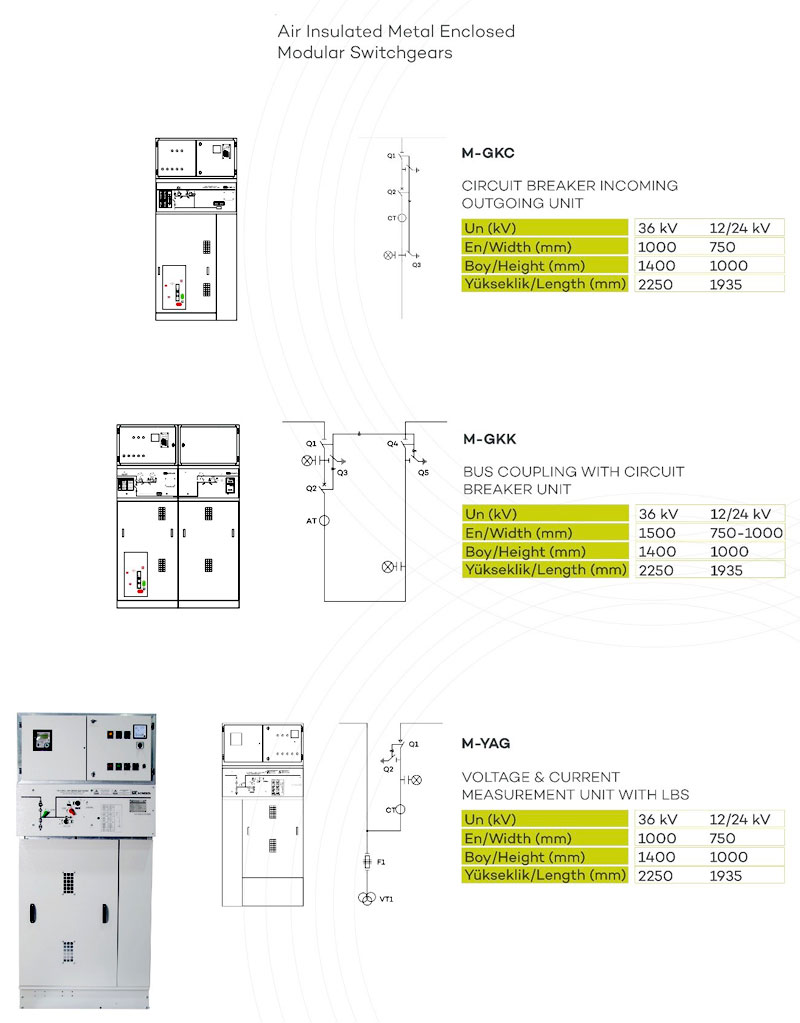

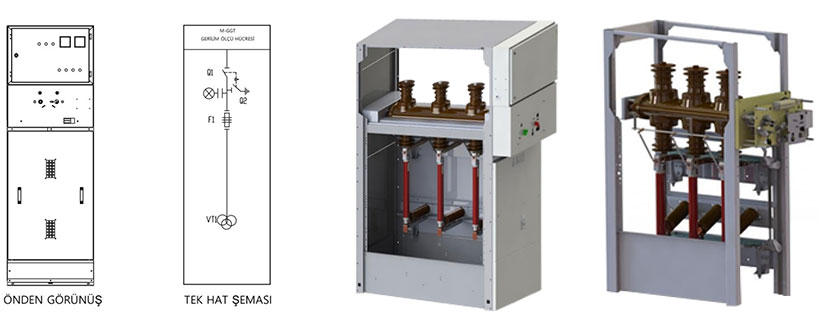

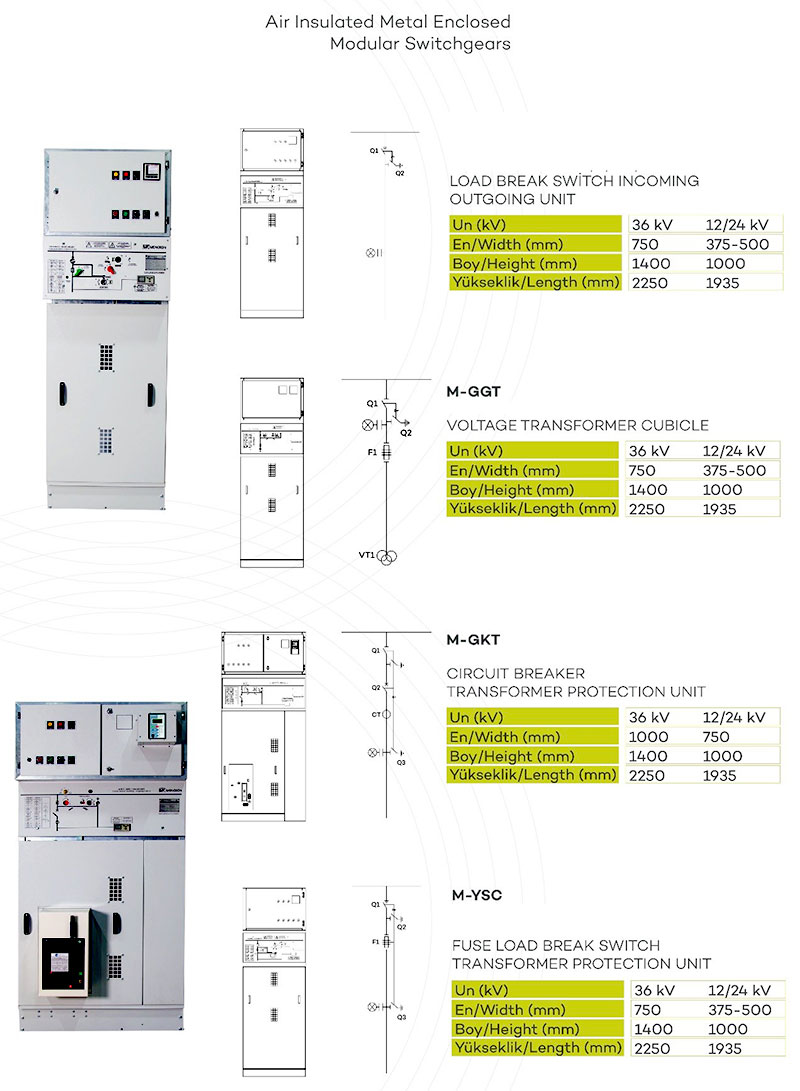

Air Insulated Modular Switchgear Section Air Insulated Modular

• Switchgear consists of 3 main sections. These sections are secured with keys and mechanical locks. Alongside this, continuous transitions are isolated from the other sections.

• A-Low Voltage Section This section contains every secondary circuit for control (measurement,preservation,tracing,communication and other related systems).

• B-Cuting and Cable Section Following equipments are used in Cuting Section: -Vacuum Circuit Breaker -SF6 Circuit Breaker -SF6 Gas Load Break Switch -SF6 Gas Disconnector -Voltage Transformer -Current Transformer -Mid Voltage Fuse - Capacitive Voltage Divider -Cable connector and connection components.

• C-Busbar Section Busbar section contains suitable electrolytic coppers, insulators and bushing insulators selected for nominal voltage. Access to this section requires special instructions and security precautions.

Some of the advantages of using the produced compact posts and medium-voltage panels:

·        Decreasing volume and size of medium-voltage panels, compared to traditional ones;

·        Capability of connecting to automation systems; High safety in exploitation;

·        Using the latest global technology;

·        Lack of need to maintenance during useful long life
